All your storage
are belong to Ansible

Adam Litke - alitke@redhat.com
Senior Software Engineer - Red Hat
August Penguin - 7.9.2017

Storage Vendors

Storage Features

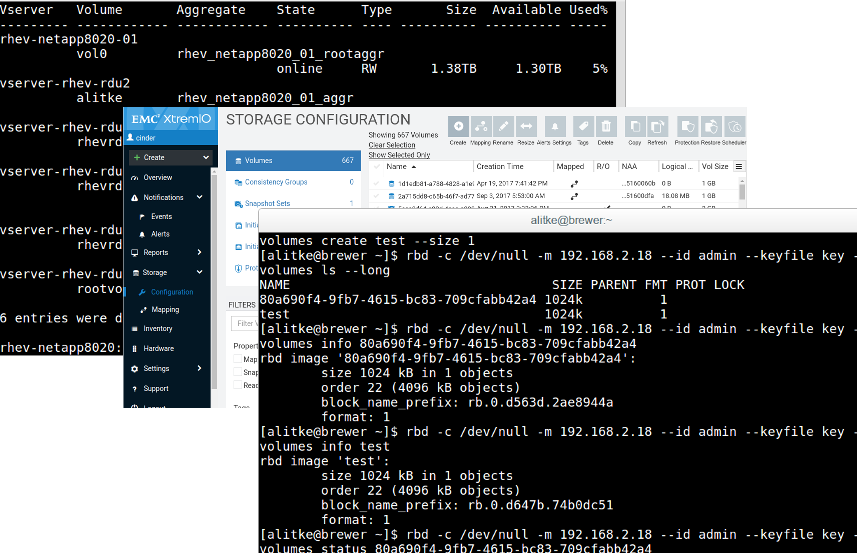

Storage Management APIs

The readout

• Vendor and feature diversity can be good
• API fragmentation is bad for collaboration
• Can we build a community including:
  • IT / DevOps
  • Virtualization
  • Container orchestration
• To provide:
  • Vendor-neutral automation
  • Efficient control plan operations

For example

My create volume

target: my-ceph-storage
operation: create_volume
params:
  id: 80a690f4-9fb7-4615-bc83-709cfabb42a4
  size: 1


Your create volume

target: your-netapp-storage
operation: create_volume
params:
  id: 80a690f4-9fb7-4615-bc83-709cfabb42a4
  size: 1


But what about cinder

• ✔Mature and stable
• ✔Broad vendor support
• ✔Durable API and model
• ✖Too tightly coupled to Openstack

The plan

What is Ansible?

• Simple, human readable automation
• Declarative model
• Agentless
• Large ecosystem of modules and roles
• ansible.com

Quarry Ansible Role

• Jinja templating plus (not) secret sauce
• Playbooks define tasks that execute against storage targets
• ansible-galaxy install aglitke.quarry

Operations

A common API to perform a storage task

• Every backend provides an implementation
• Create / Delete volume
• Attach / Detach volume
• Create / Delete snapshot

Backends

Storage type with a unique way of performing operations

• Ceph
• Gluster
• Netapp Data ONTAP
• Dell EMC XtremIO
• IBM DS8000

Targets

A backend instance defined by configuration parameters

• API URL
• Login credentials
• Namespace (cluster / pool / vserver)

Configure a storage target

---
target_host: localhost
target_user:
backend: ceph
backend_config:
  osd: 192.168.2.18
  id: admin
  key: AQDfdKxYTCs0LSBAt08Qk23Z+ecgAAb2Je2YuA==
  pool: volumes


Write a playbook

---
- hosts: localhost
  roles:
    - aglitke.quarry

  vars:
    generate_only: false
    generated_playbook: "/tmp/playbook.yml"

    target: myceph
    operation: create_volume
    params:
      id: 80a690f4-9fb7-4615-bc83-709cfabb42a4
      size: 1


Run the playbook

What happened?

1. Validate playbook variables
2. Load target configuration
3. Select the template for this backend/operation
4. Generate a playbook from template and parameters
5. Execute generated playbook

Quarry role tasks

---
- include: check_vars.yml

- include: make_playbook.yml
  when: generated_playbook is defined

- name: Run playbook
  shell: ansible-playbook {{ generated_playbook }}
  when:
  - generated_playbook is defined
  - not generate_only


Validating variables

- name: Checking that required playbook variables are set
  fail: msg="Variable {{ item }} is not defined in the playbook"
  with_items:
  - target
  - operation
  - params
  when: vars[item] is undefined

- name: Load target definition
  include_vars:
    file: "{{ target_definitions_dir }}/{{ target }}.yml"

- name: Checking that required target variables are set
  fail: msg="Variable {{ item }} missing from the target definition {{ target }}"
  with_items:
  - target_host
  - target_user
  - backend
  - backend_config
  when: vars[item] is undefined


Generate playbook

---
- name: Generate playbook
  template:
    src: "{{ playbook_templates_dir }}/\
                {{ backend }}/{{ operation }}.yml.j2"
    dest: "{{ generated_playbook }}"


Operation template

- hosts: {{ target_host }}
  remote_user: {{ target_user }}

  tasks:
  - name: Setup auth
    copy:
        content: "{{ backend_config.key }}"
        dest: /tmp/quarry_ceph_key

  - name: Create a volume
    shell: >
        rbd -m {{ backend_config.osd }}
        --id {{ backend_config.id }}
        --keyfile /tmp/quarry_ceph_key
        -p {{ backend_config.pool }}
        create {{ params.id }} --size {{ params.size }}

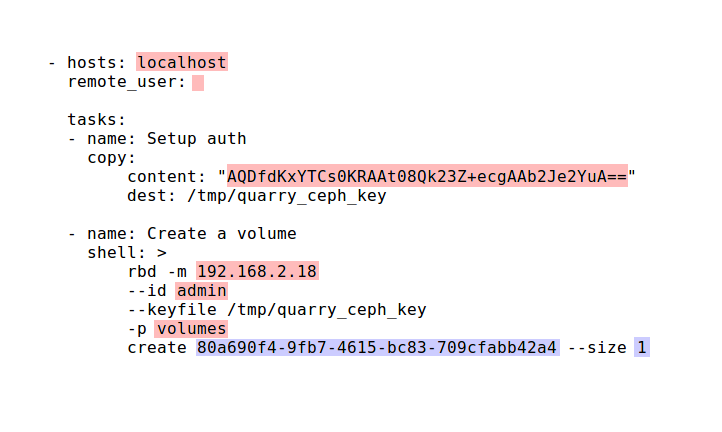

Generated playbook

Using a different target?

---
- hosts: localhost
  roles:
    - aglitke.quarry

  vars:
    generate_only: false
    generated_playbook: "/tmp/playbook.yml"

    target: myxtremio <== (change me) ==<
    operation: create_volume
    params:
      id: 80a690f4-9fb7-4615-bc83-709cfabb42a4
      size: 1


Integrating quarry

• Use the quarry role in your existing Ansible workflows
  • Orchestrate backups via snapshots
  • Provision luns for new hardware or VMs
  • Infrastructure as code
• Add provisioning support to applications
  • Generate playbooks in response to application events
  • Run ansible via shell or python SDK
  • Results available in JSON format

Work in progress

Questions?
